01Eureka

Eureka

简单使用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
@SpringBootApplication
@EnableEurekaServer
public class APP {
    public static void main(String[] args) {
        SpringApplication.run(APP.class,args);
    }
}

server:
  port: 8000
eureka:
  server:
    enable-self-preservation: false  #关闭自我保护机制
    eviction-interval-timer-in-ms: 4000 #设置清理间隔（单位：毫秒 默认是60*1000）
  instance:
    hostname: localhost


  client:
    registerWithEureka: false #不把自己作为一个客户端注册到自己身上
    fetchRegistry: false  #不需要从服务端获取注册信息（因为在这里自己就是服务端，而且已经禁用自己注册了）
    serviceUrl:
      defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
@SpringBootApplication
@EnableEurekaClient
public class APP {
    public static void main(String[] args) {
        SpringApplication.run(APP.class,args);
    }
}

server:
  port: 8001
spring:
  application:
    name: eureka-client
eureka:
  client:
    service-url:
      defaultZone: http://localhost:8000/eureka #有多个以逗号分割
  instance:
    instance-id: clent-0 #此实例注册到eureka的实例Id
    prefer-ip-address: true # 是否显示IP地址
    lease-renewal-interval-in-seconds: 10 # 多长时间发送心跳
    lease-expiration-duration-in-seconds: 40 # 服务端收到最后一次心跳后多长时间判定过期

Eureka概念

服务注册：Eureka Client会通过发送REST请求的方式向Eureka Server注册自己的服务，提供自身的元数据，比如 IP 地址、端口、运行状况指标的URL、主页地址等信息。Eureka Server接收到注册请求后，就会把这些元数据信息存储在一个ConcurrentHashMap中。

服务续约：在服务注册后，Eureka Client会维护一个心跳来持续通知Eureka Server，说明服务一直处于可用状态，防止被剔除。Eureka Client在默认的情况下会每隔30秒发送一次心跳来进行服务续约。实质上就是修改Lease对象里面的时间戳。

服务同步：Eureka Server之间会互相进行注册，构建Eureka Server集群，不同Eureka Server之间会进行服务同步，用来保证服务信息的一致性。

获取服务：服务消费者（Eureka Client）在启动的时候，会发送一个REST请求给Eureka Server，获取上面注册的服务清单，并且缓存在Eureka Client本地，默认缓存30秒。同时，为了性能考虑，Eureka Server也会维护一份只读的服务清单缓存，该缓存每隔30秒更新一次。

服务调用：服务消费者在获取到服务清单后，就可以根据清单中的服务列表信息，查找到其他服务的地址，从而进行远程调用。Eureka有Region和Zone的概念，一个Region可以包含多个Zone，在进行服务调用时，优先访问处于同一个Zone中的服务提供者。

服务下线：当Eureka Client需要关闭或重启时，就不希望在这个时间段内再有请求进来，所以，就需要提前先发送REST请求给Eureka Server，告诉Eureka Server自己要下线了，Eureka Server在收到请求后，就会把该服务状态置为下线（DOWN），并把该下线事件传播出去。

服务剔除：有时候，服务实例可能会因为网络故障等原因导致不能提供服务，而此时该实例也没有发送请求给Eureka Server来进行服务下线，所以，还需要有服务剔除的机制。Eureka Server在启动的时候会创建一个定时任务，每隔一段时间（默认60秒），从当前服务清单中把超时没有续约（默认90秒）的服务剔除。

自我保护：既然Eureka Server会定时剔除超时没有续约的服务，那就有可能出现一种场景，网络一段时间内发生了异常，所有的服务都没能够进行续约，Eureka Server就把所有的服务都剔除了，这样显然不太合理。所以，就有了自我保护机制，当短时间内，统计续约失败的比例，如果达到一定阈值（15%），则会触发自我保护的机制，在该机制下，Eureka Server不会剔除任何的微服务，等到正常后，再退出自我保护机制。（根据已经注册的实例计算的预期心跳数和实际的对比）

服务端缓存：在服务端增量拉取和全量拉取都会走缓存，服务端缓存分为3级缓存，三级缓存的主要目的是为了解决读写冲突。三级缓存是只读缓存（ConcurrentMap<Key, Value> readOnlyCacheMap），有一个线程每30s对比二级缓存（二级缓存没有就去以及缓存），更新自己的三级缓存。所以三级缓存存在30s的误差。二级缓存是guava提供的 LoadingCache<Key, Value> readWriteCacheMap，没有误差，每次有更新操作的时候都会让缓存中的数据失效，二级缓存的数据设置了过期时间默认为180s。一级缓存是ConcurrentHashMap<String, Map<String, Lease>> registry，所有的注册都直接保存在这里。当客户端拉取数据的时候，会判断是否可以走三级缓存（默认开启），从三级缓存中获取，如果没有，就从二级缓存中获取，然后同步到三级缓存中，如果二级缓存中依然没有，就会从一级缓存中获取，然后同步到二级缓存，再同步到三级缓存。

客户端缓存：客户端同样也是维护了一个Instance缓存，单独开一个线程，默认每30s去服务端拉取数据，然后同步到本地缓存，也会存在30s的误差，所以如果服务端开启三级缓存，就会发生最多1分钟的延迟，以及后面ribbion也会做缓存30s，还会有更长的延迟。

Region、Zone:eureka提供了region和zone两个概念来进行分区，这两个概念均来自于亚马逊的AWS：region：可以简单理解为地理上的分区，比如上海地区，或者广州地区，再或者北京等等，没有具体大小的限制。根据项目具体的情况，可以自行合理划分region。zone：可以简单理解为region内的具体机房，比如说region划分为北京，然后北京有两个机房，就可以在此region之下划分出zone1,zone2两个zone。一个机房内的服务优先调用同一个机房内的服务，当同一个机房的服务不可用的时候，再去调用其它机房的服务，以达到减少延时的作用

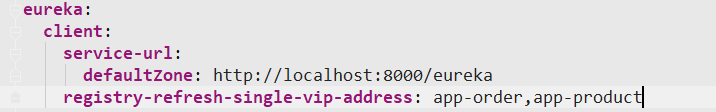

VIP:在客户端配置vip,可以实现客户端只去拉取配置了vip的注册信息，多个用逗号分割

image-20201202144221822

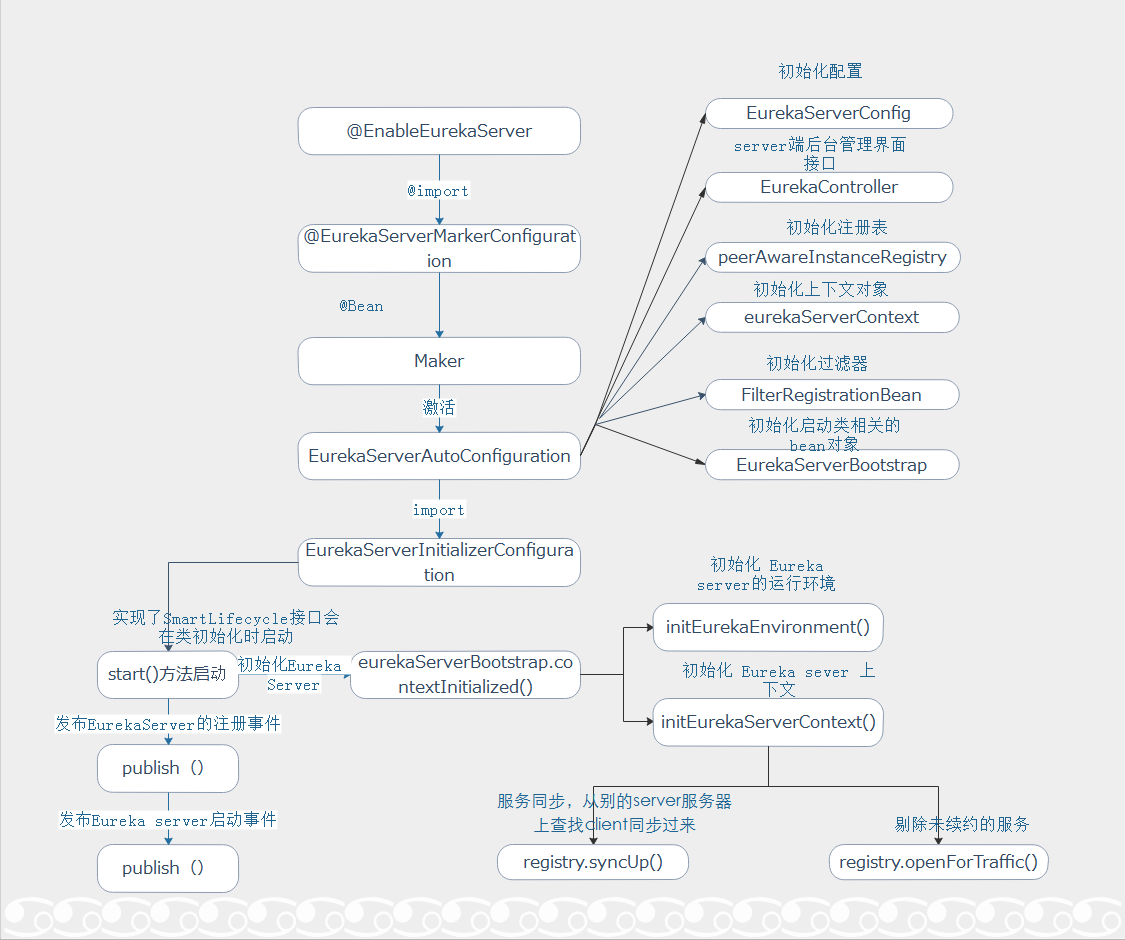

Eureka-Server主要原理

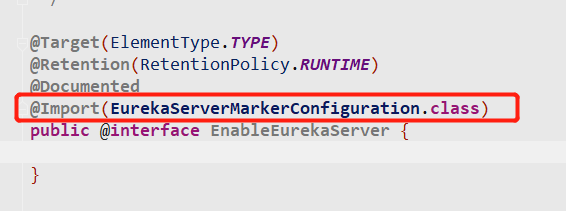

image-20201130141642597

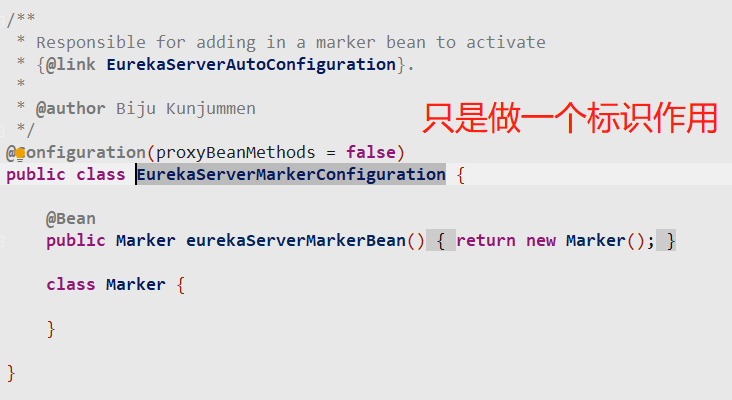

image-20201130141727621

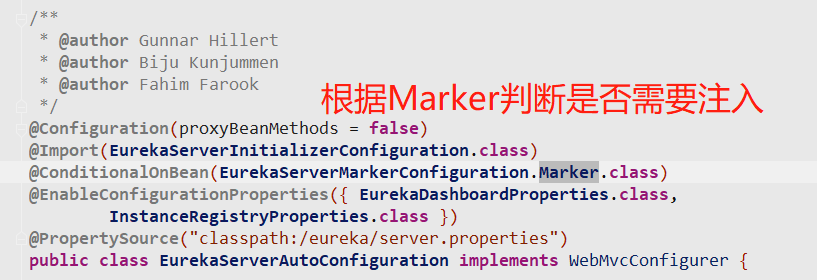

image-20201130141849152

这里主要是初始化一个Jersey Web服务器，后面注册，同步，下线等等都是使用Http请求完成

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
EurekaServerAutoConfiguration.java

@Bean
public javax.ws.rs.core.Application jerseyApplication(Environment environment,
      ResourceLoader resourceLoader) {

   ClassPathScanningCandidateComponentProvider provider = new ClassPathScanningCandidateComponentProvider(
         false, environment);

   // Filter to include only classes that have a particular annotation.
   //
   provider.addIncludeFilter(new AnnotationTypeFilter(Path.class));
   provider.addIncludeFilter(new AnnotationTypeFilter(Provider.class));

   // Find classes in Eureka packages (or subpackages)
   //
   Set<Class<?>> classes = new HashSet<>();
   for (String basePackage : EUREKA_PACKAGES) {
      Set<BeanDefinition> beans = provider.findCandidateComponents(basePackage);
      for (BeanDefinition bd : beans) {
         Class<?> cls = ClassUtils.resolveClassName(bd.getBeanClassName(),
               resourceLoader.getClassLoader());
         classes.add(cls);
      }
   }

服务注册

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
//ApplicationResource.java
//接收服务注册的http请求
@POST
@Consumes({"application/json", "application/xml"})
public Response addInstance(InstanceInfo info,
                            @HeaderParam(PeerEurekaNode.HEADER_REPLICATION) String isReplication) {
    //info:实例信息
    //isReplication:请求头 ，是否是同步的请求

    logger.debug("Registering instance {} (replication={})", info.getId(), isReplication);
    // validate that the instanceinfo contains all the necessary required fields

	.........
    registry.register(info, "true".equals(isReplication));
    return Response.status(204).build();  // 204 to be backwards compatible
}

//PeerAwareInstanceRegistryImpl.java
  @Override
    public void register(final InstanceInfo info, final boolean isReplication) {
        int leaseDuration = Lease.DEFAULT_DURATION_IN_SECS;
        if (info.getLeaseInfo() != null && info.getLeaseInfo().getDurationInSecs() > 0) {
            leaseDuration = info.getLeaseInfo().getDurationInSecs();
        }
        //调用父类的注册
        super.register(info, leaseDuration, isReplication);
        //将注册发送到其他的 server,实现同步
        replicateToPeers(Action.Register, info.getAppName(), info.getId(), info, null, isReplication);
    }


 public void register(InstanceInfo registrant, int leaseDuration, boolean isReplication) {
        try {
            read.lock();
            //private final ConcurrentHashMap<String, Map<String, Lease<InstanceInfo>>> registry
            //最终保存注册信息的是两层Map
            //外层key->applicationName
            //内层key->id
            //内层value->Lease<InstanceInfo>
            //Lease租债器，用于判断是否过期
            Map<String, Lease<InstanceInfo>> gMap = registry.get(registrant.getAppName());
            REGISTER.increment(isReplication);
            if (gMap == null) {
                final ConcurrentHashMap<String, Lease<InstanceInfo>> gNewMap = new ConcurrentHashMap<String, Lease<InstanceInfo>>();
                gMap = registry.putIfAbsent(registrant.getAppName(), gNewMap);
                if (gMap == null) {
                    gMap = gNewMap;
                }
            }
           .......

            //放到Map中
            gMap.put(registrant.getId(), lease);
          ............
        } finally {
            read.unlock();
        }
    }
//同步信息
private void replicateToPeers(Action action, String appName, String id,
                                  InstanceInfo info /* optional */,
                                  InstanceStatus newStatus /* optional */, boolean isReplication) {
        Stopwatch tracer = action.getTimer().start();
        try {
            if (isReplication) {
                numberOfReplicationsLastMin.increment();
            }
            // If it is a replication already, do not replicate again as this will create a poison replication
            if (peerEurekaNodes == Collections.EMPTY_LIST || isReplication) {
                return;
            }

            for (final PeerEurekaNode node : peerEurekaNodes.getPeerEurekaNodes()) {
                // If the url represents this host, do not replicate to yourself.
                if (peerEurekaNodes.isThisMyUrl(node.getServiceUrl())) {
                    continue;
                }
                replicateInstanceActionsToPeers(action, appName, id, info, newStatus, node);
            }
        } finally {
            tracer.stop();
        }
    }

private void replicateInstanceActionsToPeers(Action action, String appName,
                                                 String id, InstanceInfo info, InstanceStatus newStatus,
                                                 PeerEurekaNode node) {
        try {
            InstanceInfo infoFromRegistry = null;
            CurrentRequestVersion.set(Version.V2);
            switch (action) {
                case Cancel:
                    node.cancel(appName, id);
                    break;
                case Heartbeat:
                    InstanceStatus overriddenStatus = overriddenInstanceStatusMap.get(id);
                    infoFromRegistry = getInstanceByAppAndId(appName, id, false);
                    node.heartbeat(appName, id, infoFromRegistry, overriddenStatus, false);
                    break;
                case Register:
                    node.register(info);
                    break;
                case StatusUpdate:
                    infoFromRegistry = getInstanceByAppAndId(appName, id, false);
                    node.statusUpdate(appName, id, newStatus, infoFromRegistry);
                    break;
                case DeleteStatusOverride:
                    infoFromRegistry = getInstanceByAppAndId(appName, id, false);
                    node.deleteStatusOverride(appName, id, infoFromRegistry);
                    break;
            }
        } catch (Throwable t) {
            logger.error("Cannot replicate information to {} for action {}", node.getServiceUrl(), action.name(), t);
        }
    }

生成全量的注册信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
ApplicationsResource.java
@GET
    public Response getContainers(@PathParam("version") String version,
                                  @HeaderParam(HEADER_ACCEPT) String acceptHeader,
                                  @HeaderParam(HEADER_ACCEPT_ENCODING) String acceptEncoding,
                                  @HeaderParam(EurekaAccept.HTTP_X_EUREKA_ACCEPT) String eurekaAccept,
                                  @Context UriInfo uriInfo,
                                  @Nullable @QueryParam("regions") String regionsStr) {

        boolean isRemoteRegionRequested = null != regionsStr && !regionsStr.isEmpty();
        String[] regions = null;
        if (!isRemoteRegionRequested) {
            EurekaMonitors.GET_ALL.increment();
        } else {
            regions = regionsStr.toLowerCase().split(",");
            Arrays.sort(regions); // So we don't have different caches for same regions queried in different order.
            EurekaMonitors.GET_ALL_WITH_REMOTE_REGIONS.increment();
        }

        // Check if the server allows the access to the registry. The server can
        // restrict access if it is not
        // ready to serve traffic depending on various reasons.
        if (!registry.shouldAllowAccess(isRemoteRegionRequested)) {
            return Response.status(Status.FORBIDDEN).build();
        }
        CurrentRequestVersion.set(Version.toEnum(version));
        KeyType keyType = Key.KeyType.JSON;
        String returnMediaType = MediaType.APPLICATION_JSON;
        if (acceptHeader == null || !acceptHeader.contains(HEADER_JSON_VALUE)) {
            keyType = Key.KeyType.XML;
            returnMediaType = MediaType.APPLICATION_XML;
        }
		//创建Key
        Key cacheKey = new Key(Key.EntityType.Application,
                ResponseCacheImpl.ALL_APPS,
                keyType, CurrentRequestVersion.get(), EurekaAccept.fromString(eurekaAccept), regions
        );

        Response response;
    	//如果接收gzip就返回gzip
        if (acceptEncoding != null && acceptEncoding.contains(HEADER_GZIP_VALUE)) {
            response = Response.ok(responseCache.getGZIP(cacheKey))
                    .header(HEADER_CONTENT_ENCODING, HEADER_GZIP_VALUE)
                    .header(HEADER_CONTENT_TYPE, returnMediaType)
                    .build();
        } else {
            //如果不接收gzip就返回正常格式,流程和getGZIP差不多，只是GZIP加压了
            response = Response.ok(responseCache.get(cacheKey))
                    .build();
        }
        return response;

    //通过key获取GZIP压缩后的缓存
     public byte[] getGZIP(Key key) {
        //获取数据，可以配置是否从只读缓存获取数据
        Value payload = getValue(key, shouldUseReadOnlyResponseCache);
        if (payload == null) {
            return null;
        }
         //压缩数据
        return payload.getGzipped();
    }


    Value getValue(final Key key, boolean useReadOnlyCache) {
        Value payload = null;
        try {
            if (useReadOnlyCache) {
                //从只读缓存获取数据
                //有单独的一个线程维护只读缓存，默认30s执行一次，
                //将只读缓存里面所有的数据与读写缓存的数据做对比
                //如果不同就更新只读缓存
                final Value currentPayload = readOnlyCacheMap.get(key);
                if (currentPayload != null) {
                    payload = currentPayload;
                } else {
                    //在只读缓存没有获取到数据，从读写缓存获取数据
                    payload = readWriteCacheMap.get(key);
                    //将读写缓存的数据放到只读缓存
                    readOnlyCacheMap.put(key, payload);
                }
            } else {
                payload = readWriteCacheMap.get(key);
            }
        } catch (Throwable t) {
            logger.error("Cannot get value for key : {}", key, t);
        }
        return payload;
    }

    //===========================读写缓存====================================
    this.readWriteCacheMap =
                CacheBuilder.newBuilder().initialCapacity(serverConfig.getInitialCapacityOfResponseCache())
               //上一次写后写后的过期时间,默认是180s
              //该缓存还可以配置距离上一次读/写后的过期时间（expireAfterAccess），只是这里没有用
        .expireAfterWrite(serverConfig.getResponseCacheAutoExpirationInSeconds(), TimeUnit.SECONDS)
        			//过期后的监听器
                        .removalListener(new RemovalListener<Key, Value>() {
                            @Override
                            public void onRemoval(RemovalNotification<Key, Value> notification) {
                                Key removedKey = notification.getKey();
                                if (removedKey.hasRegions()) {
                                    Key cloneWithNoRegions = removedKey.cloneWithoutRegions();
                                    regionSpecificKeys.remove(cloneWithNoRegions, removedKey);
                                }
                            }
                        })
        		//如果没有在缓存中获取到数据，就从执行CacheLoader.load获取数据，并同步到缓存
                        .build(new CacheLoader<Key, Value>() {
                            @Override
                            public Value load(Key key) throws Exception {
                                if (key.hasRegions()) {
                                    Key cloneWithNoRegions = key.cloneWithoutRegions();
                                    regionSpecificKeys.put(cloneWithNoRegions, key);
                                }
                                //从一级缓存获取 registry
                                Value value = generatePayload(key);
                                return value;
                            }
                        });

    //当发生修改的时候会手动让缓存失效
    public void invalidate(Key... keys) {
        for (Key key : keys) {
            logger.debug("Invalidating the response cache key : {} {} {} {}, {}",
                    key.getEntityType(), key.getName(), key.getVersion(), key.getType(), key.getEurekaAccept());

            readWriteCacheMap.invalidate(key);
            Collection<Key> keysWithRegions = regionSpecificKeys.get(key);
            if (null != keysWithRegions && !keysWithRegions.isEmpty()) {
                for (Key keysWithRegion : keysWithRegions) {
                    logger.debug("Invalidating the response cache key : {} {} {} {} {}",
                            key.getEntityType(), key.getName(), key.getVersion(), key.getType(), key.getEurekaAccept());
                    readWriteCacheMap.invalidate(keysWithRegion);
                }
            }
        }
    }

    //===========================只读缓存更新线程==============================
    //默认是30s更新一次
    private TimerTask getCacheUpdateTask() {
        return new TimerTask() {
            @Override
            public void run() {
                logger.debug("Updating the client cache from response cache");
                for (Key key : readOnlyCacheMap.keySet()) {
                    if (logger.isDebugEnabled()) {
                        logger.debug("Updating the client cache from response cache for key : {} {} {} {}",
                                key.getEntityType(), key.getName(), key.getVersion(), key.getType());
                    }
                    try {
                        CurrentRequestVersion.set(key.getVersion());
                        Value cacheValue = readWriteCacheMap.get(key);
                        Value currentCacheValue = readOnlyCacheMap.get(key);
                        if (cacheValue != currentCacheValue) {
                            readOnlyCacheMap.put(key, cacheValue);
                        }
                    } catch (Throwable th) {
                        logger.error("Error while updating the client cache from response cache for key {}", key.toStringCompact(), th);
                    }
                }
            }
        };
    }

获取增量数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
//与获取全量数据并没有什么差别，都是走的三级缓存
//只是Key中的参数不同
//所以在读写缓存中获取数据并且没有的时候，区以及缓存获取数据有所区别
//主要体现在readWriteCacheMap-》CacheLoader-》load-》generatePayload(key)

private Value generatePayload(Key key) {
        Stopwatch tracer = null;
        try {
            String payload;
            switch (key.getEntityType()) {
                case Application:
                    boolean isRemoteRegionRequested = key.hasRegions();
					//获取全量数据
                    if (ALL_APPS.equals(key.getName())) {
                        if (isRemoteRegionRequested) {
                            tracer = serializeAllAppsWithRemoteRegionTimer.start();
                            payload = getPayLoad(key, registry.getApplicationsFromMultipleRegions(key.getRegions()));
                        } else {
                            tracer = serializeAllAppsTimer.start();
                            payload = getPayLoad(key, registry.getApplications());
                        }
                      //获取增量数据
                     //在一级缓存中维护了一个队列 recentlyChangedQueue
                     //队列中保存的就是最近有过修改的实例的信息
                     //增量就是获取该队列中的信息，并且返回回去
                    } else if (ALL_APPS_DELTA.equals(key.getName())) {
                        if (isRemoteRegionRequested) {
                            tracer = serializeDeltaAppsWithRemoteRegionTimer.start();
                            versionDeltaWithRegions.incrementAndGet();
                            versionDeltaWithRegionsLegacy.incrementAndGet();
                            payload = getPayLoad(key,
                                    registry.getApplicationDeltasFromMultipleRegions(key.getRegions()));
                        } else {
                            tracer = serializeDeltaAppsTimer.start();
                            versionDelta.incrementAndGet();
                            versionDeltaLegacy.incrementAndGet();
                            //registry.getApplicationDeltas() 就是从队列中获取数据
                            //这里面将HashCode赋值为全部Instance的HashCode
                            payload = getPayLoad(key, registry.getApplicationDeltas());
                        }
                    } else {
                        tracer = serializeOneApptimer.start();
                        payload = getPayLoad(key, registry.getApplication(key.getName()));
                    }
                    break;
                 //VIP就是客户端拉取指定的服务
                case VIP:
                case SVIP:
                    tracer = serializeViptimer.start();
                    payload = getPayLoad(key, getApplicationsForVip(key, registry));
                    break;
                default:
                    logger.error("Unidentified entity type: {} found in the cache key.", key.getEntityType());
                    payload = "";
                    break;
            }
            return new Value(payload);
        } finally {
            if (tracer != null) {
                tracer.stop();
            }
        }
    }

//该队列也是有线程定时去删除
 private TimerTask getDeltaRetentionTask() {
        return new TimerTask() {

            @Override
            public void run() {
                Iterator<RecentlyChangedItem> it = recentlyChangedQueue.iterator();
                while (it.hasNext()) {
                    if (it.next().getLastUpdateTime() <
                            System.currentTimeMillis() - serverConfig.getRetentionTimeInMSInDeltaQueue()) {
                        it.remove();
                    } else {
                        break;
                    }
                }
            }

        };
    }

Eureka-Client

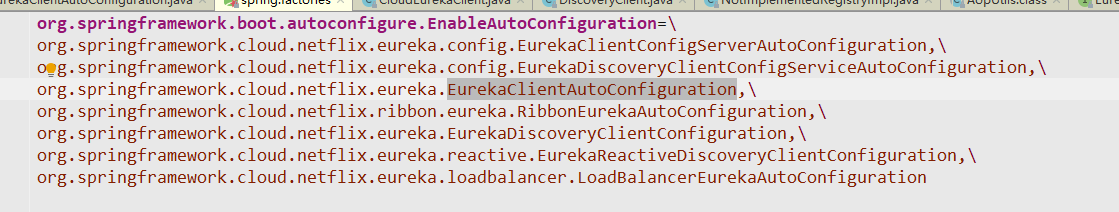

image-20201201161810469

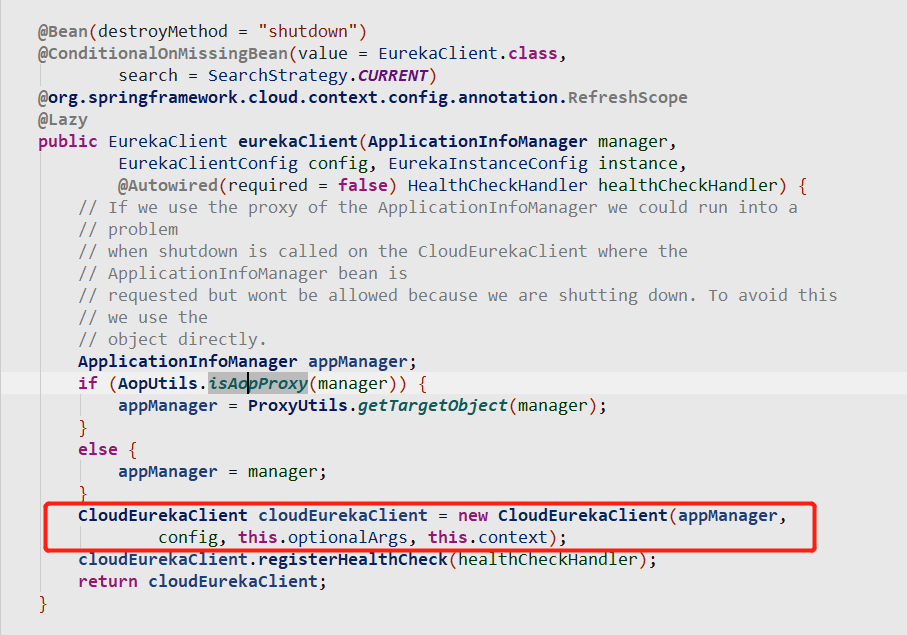

image-20201201161915459

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
@Inject
DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
                Provider<BackupRegistry> backupRegistryProvider, EndpointRandomizer endpointRandomizer) {

    ................

     //判断是否需要从注册中心拉取注册信息
    if (config.shouldFetchRegistry()) {
        this.registryStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRY_PREFIX + "lastUpdateSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
    } else {
        this.registryStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
    }
	//判断时许需要将自己注册到注册中心
    if (config.shouldRegisterWithEureka()) {
        this.heartbeatStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRATION_PREFIX + "lastHeartbeatSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
    } else {
        this.heartbeatStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
    }

   .................

    //初始化两个线程，一个是从注册中心拉取数据，一个是发送心跳
    try {
        // default size of 2 - 1 each for heartbeat and cacheRefresh
        scheduler = Executors.newScheduledThreadPool(2,
                new ThreadFactoryBuilder()
                        .setNameFormat("DiscoveryClient-%d")
                        .setDaemon(true)
                        .build());

        heartbeatExecutor = new ThreadPoolExecutor(
                1, clientConfig.getHeartbeatExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
                new SynchronousQueue<Runnable>(),
                new ThreadFactoryBuilder()
                        .setNameFormat("DiscoveryClient-HeartbeatExecutor-%d")
                        .setDaemon(true)
                        .build()
        );  // use direct handoff

        cacheRefreshExecutor = new ThreadPoolExecutor(
                1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
                new SynchronousQueue<Runnable>(),
                new ThreadFactoryBuilder()
                        .setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d")
                        .setDaemon(true)
                        .build()
        );  // use direct handoff

	......................
	//拉取注册信息
    if (clientConfig.shouldFetchRegistry() && !fetchRegistry(false)) {
        //从备份的server拉取数据
        fetchRegistryFromBackup();
    }

   ......................

    // finally, init the schedule tasks (e.g. cluster resolvers, heartbeat, instanceInfo replicator, fetch
    //启动两个定时器
    initScheduledTasks();
	.......................
}

拉取注册

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
private boolean fetchRegistry(boolean forceFullRegistryFetch) {
    Stopwatch tracer = FETCH_REGISTRY_TIMER.start();

    try {
        // If the delta is disabled or if it is the first time, get all
        // applications
        Applications applications = getApplications();

        if (clientConfig.shouldDisableDelta()
                || (!Strings.isNullOrEmpty(clientConfig.getRegistryRefreshSingleVipAddress()))
                || forceFullRegistryFetch
                || (applications == null)
                || (applications.getRegisteredApplications().size() == 0)
                || (applications.getVersion() == -1)) //Client application does not have latest library supporting delta
        {
            .....
             //全量拉取数据
            getAndStoreFullRegistry();
        } else {
            //增量拉取数据
            getAndUpdateDelta(applications);
        }
        applications.setAppsHashCode(applications.getReconcileHashCode());
        logTotalInstances();
    } catch (Throwable e) {
        logger.error(PREFIX + "{} - was unable to refresh its cache! status = {}", appPathIdentifier, e.getMessage(), e);
        return false;
    } finally {
        if (tracer != null) {
            tracer.stop();
        }
    }

    // Notify about cache refresh before updating the instance remote status
    onCacheRefreshed();

    // Update remote status based on refreshed data held in the cache
    updateInstanceRemoteStatus();

    // registry was fetched successfully, so return true
    return true;
}

//全量拉取数据
private void getAndStoreFullRegistry() throws Throwable {
        long currentUpdateGeneration = fetchRegistryGeneration.get();

        logger.info("Getting all instance registry info from the eureka server");

        Applications apps = null;
    	//判断是否设置VIP Address
        EurekaHttpResponse<Applications> httpResponse = clientConfig.getRegistryRefreshSingleVipAddress() == null
                ? eurekaTransport.queryClient.getApplications(remoteRegionsRef.get())
                : eurekaTransport.queryClient.getVip(clientConfig.getRegistryRefreshSingleVipAddress(), remoteRegionsRef.get());
        if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
            apps = httpResponse.getEntity();
        }
        logger.info("The response status is {}", httpResponse.getStatusCode());

        ....
    }

//拉取增量数据
private void getAndUpdateDelta(Applications applications) throws Throwable {
        long currentUpdateGeneration = fetchRegistryGeneration.get();

        Applications delta = null;
        EurekaHttpResponse<Applications> httpResponse = eurekaTransport.queryClient.getDelta(remoteRegionsRef.get());
        if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
            delta = httpResponse.getEntity();
        }

        if (delta == null) {
          	//没有获取到数据，使用全量拉取
            getAndStoreFullRegistry();
        } else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {

            //将增量拉取下来的Application合并到本地缓存，并且计算HashCode
            String reconcileHashCode = "";
            if (fetchRegistryUpdateLock.tryLock()) {
                try {
                    updateDelta(delta);
                    reconcileHashCode = getReconcileHashCode(applications);
                } finally {
                    fetchRegistryUpdateLock.unlock();
                }
            } else {
                logger.warn("Cannot acquire update lock, aborting getAndUpdateDelta");
            }
            // There is a diff in number of instances for some reason
            //判断本地的HashCode和服务端返回的HashCode是否一致
            if (!reconcileHashCode.equals(delta.getAppsHashCode()) || clientConfig.shouldLogDeltaDiff()) {
                //全量拉取
                reconcileAndLogDifference(delta, reconcileHashCode);  // this makes a remoteCall
            }
        } else {
            logger.warn("Not updating application delta as another thread is updating it already");
            logger.debug("Ignoring delta update with apps hashcode {}, as another thread is updating it already", delta.getAppsHashCode());
        }
    }

注册

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
boolean register() throws Throwable {
    logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
    EurekaHttpResponse<Void> httpResponse;
    try {
        //发送Http请求
        httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
    } catch (Exception e) {
        logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
        throw e;
    }
    if (logger.isInfoEnabled()) {
        logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
    }
    return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
}

发送心跳

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
//renewalIntervalInSecs 默认30
scheduler.schedule(
                    new TimedSupervisorTask(
                            "heartbeat",
                            scheduler,
                            heartbeatExecutor,
                            renewalIntervalInSecs,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new HeartbeatThread()
                    ),
                    renewalIntervalInSecs, TimeUnit.SECONDS);

private class HeartbeatThread implements Runnable {

        public void run() {
            if (renew()) {
                lastSuccessfulHeartbeatTimestamp = System.currentTimeMillis();
            }
        }
    }

boolean renew() {
    EurekaHttpResponse<InstanceInfo> httpResponse;
    try {
        //构建http请求
        httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);
        logger.debug(PREFIX + "{} - Heartbeat status: {}", appPathIdentifier, httpResponse.getStatusCode());
        if (httpResponse.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {
            REREGISTER_COUNTER.increment();
            logger.info(PREFIX + "{} - Re-registering apps/{}", appPathIdentifier, instanceInfo.getAppName());
            long timestamp = instanceInfo.setIsDirtyWithTime();
            boolean success = register();
            if (success) {
                instanceInfo.unsetIsDirty(timestamp);
            }
            return success;
        }
        return httpResponse.getStatusCode() == Status.OK.getStatusCode();
    } catch (Throwable e) {
        logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);
        return false;
    }
}

刷新缓存

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
//registryFetchIntervalSeconds默认30
scheduler.schedule(
        new TimedSupervisorTask(
                "cacheRefresh",
                scheduler,
                cacheRefreshExecutor,
                registryFetchIntervalSeconds,
                TimeUnit.SECONDS,
                expBackOffBound,
                new CacheRefreshThread()
        ),
        registryFetchIntervalSeconds, TimeUnit.SECONDS);

 class CacheRefreshThread implements Runnable {
        public void run() {
            refreshRegistry();
        }
    }

void refreshRegistry() {
        try {
            boolean isFetchingRemoteRegionRegistries = isFetchingRemoteRegionRegistries();

            boolean remoteRegionsModified = false;
            // This makes sure that a dynamic change to remote regions to fetch is honored.
            String latestRemoteRegions = clientConfig.fetchRegistryForRemoteRegions();
            if (null != latestRemoteRegions) {
                String currentRemoteRegions = remoteRegionsToFetch.get();
                if (!latestRemoteRegions.equals(currentRemoteRegions)) {
                    // Both remoteRegionsToFetch and AzToRegionMapper.regionsToFetch need to be in sync
                    synchronized (instanceRegionChecker.getAzToRegionMapper()) {
                        if (remoteRegionsToFetch.compareAndSet(currentRemoteRegions, latestRemoteRegions)) {
                            String[] remoteRegions = latestRemoteRegions.split(",");
                            remoteRegionsRef.set(remoteRegions);
                            instanceRegionChecker.getAzToRegionMapper().setRegionsToFetch(remoteRegions);
                            remoteRegionsModified = true;
                        } else {
                            logger.info("Remote regions to fetch modified concurrently," +
                                    " ignoring change from {} to {}", currentRemoteRegions, latestRemoteRegions);
                        }
                    }
                } else {
                    // Just refresh mapping to reflect any DNS/Property change
                    instanceRegionChecker.getAzToRegionMapper().refreshMapping();
                }
            }
			//拉取注册信息
            boolean success = fetchRegistry(remoteRegionsModified);
            if (success) {
                registrySize = localRegionApps.get().size();
                lastSuccessfulRegistryFetchTimestamp = System.currentTimeMillis();
            }

        } catch (Throwable e) {
            logger.error("Cannot fetch registry from server", e);
        }
    }

如何在Client获取注册信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

@Component
public class ApplicationUtil {

	@Autowired
	private DiscoveryClient discoveryClient;

	public Map<String, List<ServiceInstance>> serviceUrl() {
		Map<String, List<ServiceInstance>> msl = new HashMap<String, List<ServiceInstance>>();
		List<String> services = discoveryClient.getServices();
		for (String service : services) {
			List<ServiceInstance> sis = discoveryClient.getInstances(service);
			msl.put(service, sis);
		}
		return msl;

	}

	public boolean isExitservice(String applicationName) {
		List<String> services = discoveryClient.getServices();
		for (String service : services) {
			if(service.toUpperCase().equals(applicationName.toUpperCase())) {
				return true;
			}
		}
		return false;
	}
}

Eureka常用配置

通用配置

1
2
3
4
5
# 应用名称，将会显示在Eureka界面的应用名称列
spring.application.name=config-service

# 应用端口，Eureka服务端默认为：8761
server.port=3333

eureka.server

1
2
3
4
5
6
7
8
9
10
11
# org.springframework.cloud.netflix.eureka.server.EurekaServerConfigBean

# 是否允许开启自我保护模式，缺省：true
# 当Eureka服务器在短时间内丢失过多客户端时，自我保护模式可使服务端不再删除失去连接的客户端
eureka.server.enable-self-preservation = false

# Peer节点更新间隔，单位：毫秒
eureka.server.peer-eureka-nodes-update-interval-ms =

# Eureka服务器清理无效节点的时间间隔，单位：毫秒，缺省：60000，即60秒
eureka.server.eviction-interval-timer-in-ms = 60000

eureka.instance

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
# org.springframework.cloud.netflix.eureka.EurekaInstanceConfigBean

# 服务名，默认取 spring.application.name 配置值，如果没有则为 unknown
eureka.instance.appname = eureka-client

# 实例ID
eureka.instance.instance-id = eureka-client-instance1

# 应用实例主机名
eureka.instance.hostname = localhost

# 客户端在注册时使用自己的IP而不是主机名，缺省：false
eureka.instance.prefer-ip-address = false

# 应用实例IP
eureka.instance.ip-address = 127.0.0.1

# 服务失效时间，失效的服务将被剔除。单位：秒，默认：90
eureka.instance.lease-expiration-duration-in-seconds = 90

# 服务续约（心跳）频率，单位：秒，缺省30
eureka.instance.lease-renewal-interval-in-seconds = 30

# 状态页面的URL，相对路径，默认使用 HTTP 访问，如需使用 HTTPS则要使用绝对路径配置，缺省：/info
eureka.instance.status-page-url-path = /info

# 健康检查页面的URL，相对路径，默认使用 HTTP 访问，如需使用 HTTPS则要使用绝对路径配置，缺省：/health
eureka.instance.health-check-url-path = /health

eureka.client

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
# org.springframework.cloud.netflix.eureka.EurekaClientConfigBean

# Eureka服务器的地址，类型为HashMap，缺省的Key为 defaultZone；缺省的Value为 http://localhost:8761/eureka
# 如果服务注册中心为高可用集群时，多个注册中心地址以逗号分隔。
eureka.client.service-url.defaultZone=http://${eureka.instance.hostname}:${server.port}/eureka

# 是否向注册中心注册自己，缺省：true
# 一般情况下，Eureka服务端是不需要再注册自己的
eureka.client.register-with-eureka = true

# 是否从Eureka获取注册信息，缺省：true
# 一般情况下，Eureka服务端是不需要的
eureka.client.fetch-registry = true

# 客户端拉取服务注册信息间隔，单位：秒，缺省：30
eureka.client.registry-fetch-interval-seconds = 30

# 是否启用客户端健康检查
eureka.client.health-check.enabled = true

#
eureka.client.eureka-service-url-poll-interval-seconds = 60

# 连接Eureka服务器的超时时间，单位：秒，缺省：5
eureka.client.eureka-server-connect-timeout-seconds = 5

# 从Eureka服务器读取信息的超时时间，单位：秒，缺省：8
eureka.client.eureka-server-read-timeout-seconds = 8

# 获取实例时是否只保留状态为 UP 的实例，缺省：true
eureka.client.filter-only-up-instances = true

# Eureka服务端连接空闲时的关闭时间，单位：秒，缺省：30
eureka.client.eureka-connection-idle-timeout-seconds = 30

# 从Eureka客户端到所有Eureka服务端的连接总数，缺省：200
eureka.client.eureka-server-total-connections = 200

# 从Eureka客户端到每个Eureka服务主机的连接总数，缺省：50
eureka.client.eureka-server-total-connections-per-host = 50
java > spring > spring-cloud
#java #spring #spring-cloud
01Eureka
https://jiajun.xyz/2020/12/08/java/spring/spring-cloud/01Eureka/
作者
Lambda
发布于
2020年12月8日
许可协议
