Spring Cloud Ribbon是基于Netflix Ribbon实现的一套客户端负载均衡的工具。

服务端的负载均衡是一个url先经过一个代理服务器（比如nginx），然后通过这个代理服务器通过算法（轮询，随机，权重等等..）反向代理你的服务，来完成负载均衡

客户端的负载均衡则是一个请求在客户端的时候已经声明了要调用哪个服务，然后通过具体的负载均衡算法来完成负载均衡

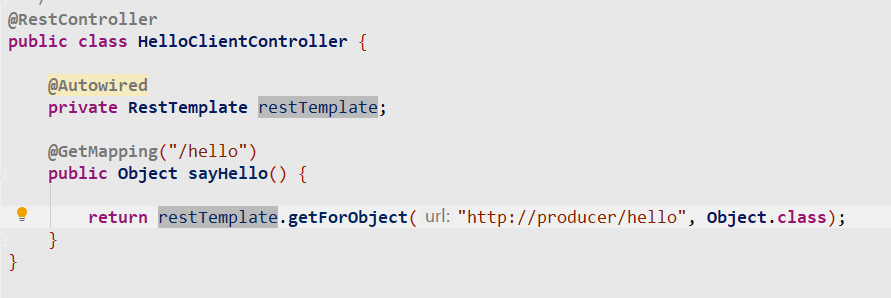

基本使用

配置隔离

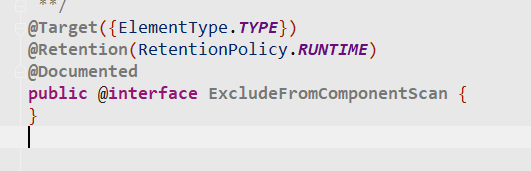

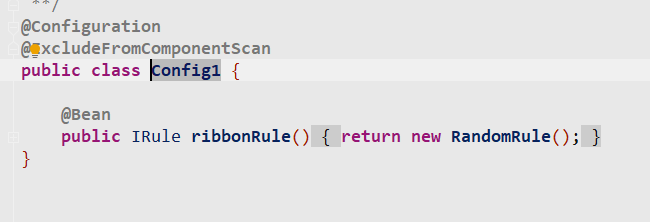

@ExcludeFromComponentScan主要是配置过滤掉扫描，如果本身就扫描不到，就没有加的必要

大致原理

解析 @RibbonClient @RibbonClients注解

该注解可以不加

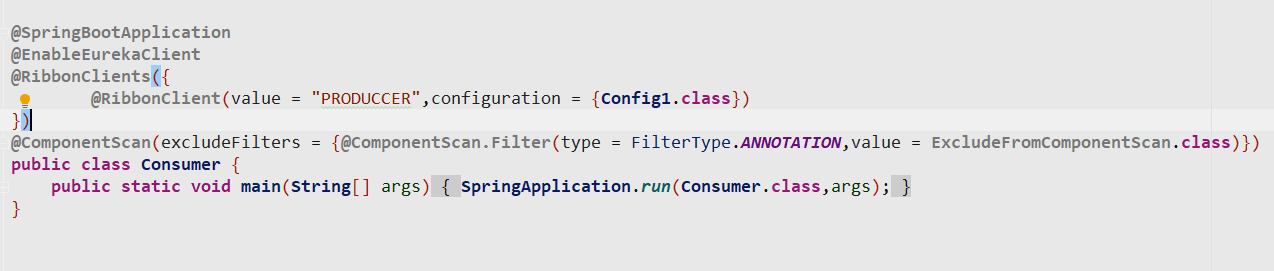

但是利用该注解可以作一些配置隔离，比如不同的服务使用不同的负载均衡策略

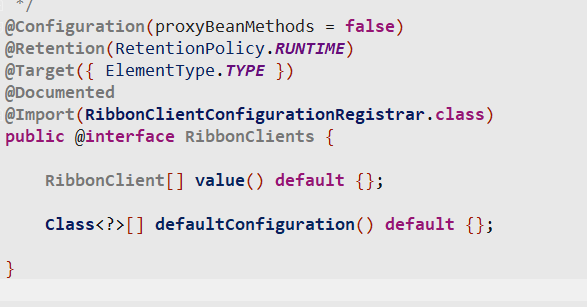

@RibbonClient @RibbonClients都加了RibbonClientConfigurationRegistrar注解

注入的RibbonClientConfigurationRegistrar 实现了ImportBeanDefinitionRegistrar接口，将@RibbonClient的configuration属性以及@RibbonClients的defaultConfiguration属性解析成RibbonClientSpecification注入。

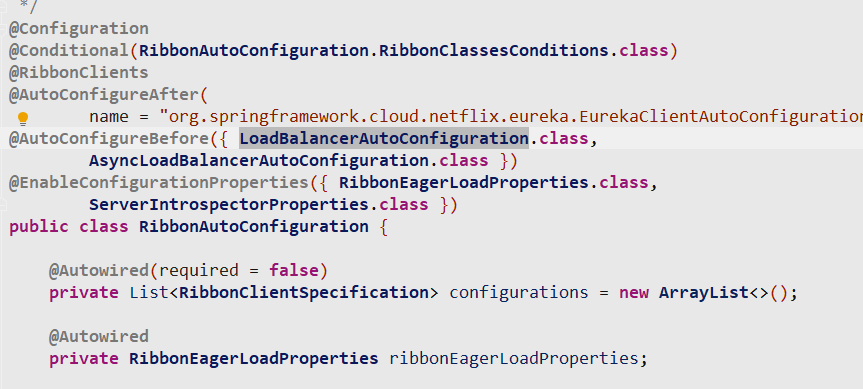

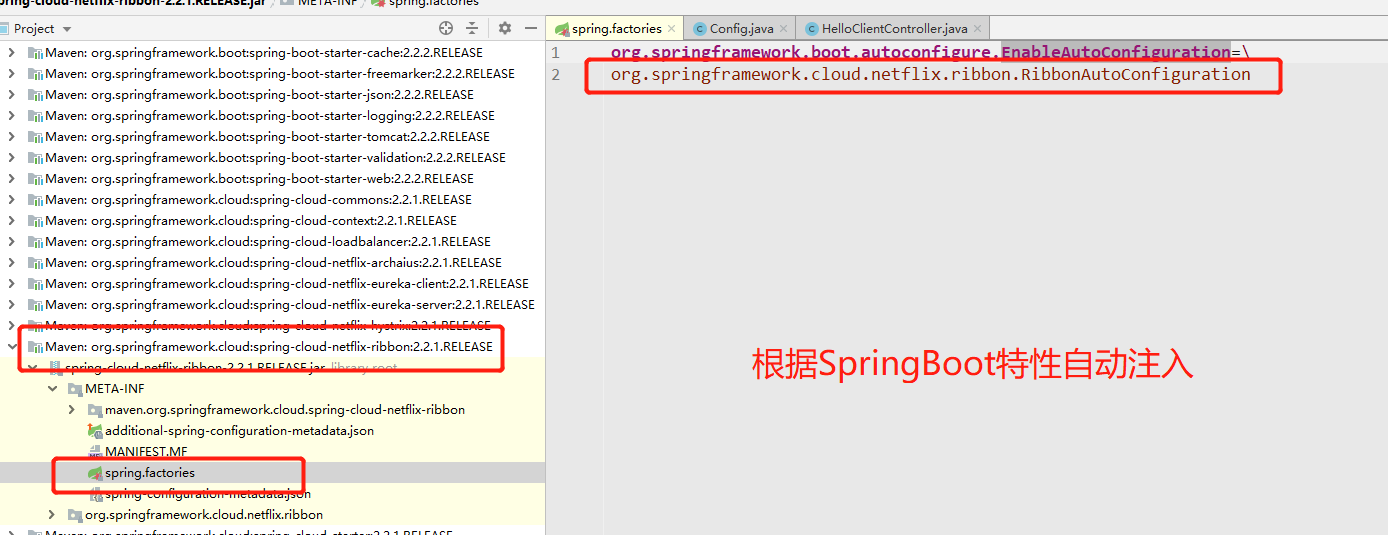

@LoadBalanced

@Configuration
@Conditional(RibbonAutoConfiguration.RibbonClassesConditions.class)
@RibbonClients
@AutoConfigureAfter(
      name = "org.springframework.cloud.netflix.eureka.EurekaClientAutoConfiguration")
@AutoConfigureBefore({ LoadBalancerAutoConfiguration.class,
      AsyncLoadBalancerAutoConfiguration.class })
@EnableConfigurationProperties({ RibbonEagerLoadProperties.class,
      ServerIntrospectorProperties.class })
public class RibbonAutoConfiguration {
  //这里注入的集合是@RibbonClient解析出来的集合
   //因为可以不加 所以这里不是必须注入的
   @Autowired(required = false)
   private List<RibbonClientSpecification> configurations = new ArrayList<>();

   @Autowired
   private RibbonEagerLoadProperties ribbonEagerLoadProperties;

   @Bean
   public HasFeatures ribbonFeature() {
      return HasFeatures.namedFeature("Ribbon", Ribbon.class);
   }

    //这个Factory是拿来创建子容器，并且获取负载均衡器的
    //所以这里把注解解析出来的配置传进去很关键
   @Bean
   public SpringClientFactory springClientFactory() {
      SpringClientFactory factory = new SpringClientFactory();
      factory.setConfigurations(this.configurations);
      return factory;
   }

    //这个是负载均衡器客户端，执行还没有解析的requestURL,并且能重建url,依赖于LoadBalancerRequest
   @Bean
   @ConditionalOnMissingBean(LoadBalancerClient.class)
   public LoadBalancerClient loadBalancerClient() {
      return new RibbonLoadBalancerClient(springClientFactory());
   }

   @Bean
   @ConditionalOnClass(name = "org.springframework.retry.support.RetryTemplate")
   @ConditionalOnMissingBean
   public LoadBalancedRetryFactory loadBalancedRetryPolicyFactory(
         final SpringClientFactory clientFactory) {
      return new RibbonLoadBalancedRetryFactory(clientFactory);
   }

   @Bean
   @ConditionalOnMissingBean
   public PropertiesFactory propertiesFactory() {
      return new PropertiesFactory();
   }

   @Bean
   @ConditionalOnProperty("ribbon.eager-load.enabled")
   public RibbonApplicationContextInitializer ribbonApplicationContextInitializer() {
      return new RibbonApplicationContextInitializer(springClientFactory(),
            ribbonEagerLoadProperties.getClients());
   }

   @Configuration(proxyBeanMethods = false)
   @ConditionalOnClass(HttpRequest.class)
   @ConditionalOnRibbonRestClient
   protected static class RibbonClientHttpRequestFactoryConfiguration {

      @Autowired
      private SpringClientFactory springClientFactory;

      @Bean
      public RestTemplateCustomizer restTemplateCustomizer(
            final RibbonClientHttpRequestFactory ribbonClientHttpRequestFactory) {
         return restTemplate -> restTemplate
               .setRequestFactory(ribbonClientHttpRequestFactory);
      }

      @Bean
      public RibbonClientHttpRequestFactory ribbonClientHttpRequestFactory() {
         return new RibbonClientHttpRequestFactory(this.springClientFactory);
      }

   }

   ..........

@Configuration(proxyBeanMethods = false)
@ConditionalOnClass(RestTemplate.class)
@ConditionalOnBean(LoadBalancerClient.class)
@EnableConfigurationProperties(LoadBalancerRetryProperties.class)
public class LoadBalancerAutoConfiguration {

   //这里会注入所有加了@LoadBalanced注解的RestTemplate
   //因为@LoadBalanced注解中有@Qualifire注解，Spring特性
   @LoadBalanced
   @Autowired(required = false)
   private List<RestTemplate> restTemplates = Collections.emptyList();

   @Autowired(required = false)
   private List<LoadBalancerRequestTransformer> transformers = Collections.emptyList();

    //03注入一个SmartInitializingSingleton
    //主要作用是将加了@LoadBalanced注解的所有RestTempLate调用02注入的RestTemplateCustomizer
    //也就是加入过滤器
    //这里只是单纯的注入SmartInitializingSingleton，SmartInitializingSingleton是spring的类
    //由spring在初始化的时候调用执行
   @Bean
   public SmartInitializingSingleton loadBalancedRestTemplateInitializerDeprecated(
         final ObjectProvider<List<RestTemplateCustomizer>> restTemplateCustomizers) {
      return () -> restTemplateCustomizers.ifAvailable(customizers -> {
         for (RestTemplate restTemplate : LoadBalancerAutoConfiguration.this.restTemplates) {
            for (RestTemplateCustomizer customizer : customizers) {
               customizer.customize(restTemplate);
            }
         }
      });
   }

   @Bean
   @ConditionalOnMissingBean
   public LoadBalancerRequestFactory loadBalancerRequestFactory(
         LoadBalancerClient loadBalancerClient) {
      return new LoadBalancerRequestFactory(loadBalancerClient, this.transformers);
   }

   @Configuration(proxyBeanMethods = false)
   @ConditionalOnMissingClass("org.springframework.retry.support.RetryTemplate")
   static class LoadBalancerInterceptorConfig {

      //01.注入RestTemplate的过滤器
      @Bean
      public LoadBalancerInterceptor ribbonInterceptor(
            LoadBalancerClient loadBalancerClient,
            LoadBalancerRequestFactory requestFactory) {
         return new LoadBalancerInterceptor(loadBalancerClient, requestFactory);
      }


      //02.注入一个 RestTemplateCustomizer,
      //主要作用是将传入的RestTemplate加上01注入的过滤器
      @Bean
      @ConditionalOnMissingBean
      public RestTemplateCustomizer restTemplateCustomizer(
            final LoadBalancerInterceptor loadBalancerInterceptor) {
         return restTemplate -> {
            List<ClientHttpRequestInterceptor> list = new ArrayList<>(
                  restTemplate.getInterceptors());
            list.add(loadBalancerInterceptor);
            restTemplate.setInterceptors(list);
         };
      }

   }
    ..........
}

Interceptor

public class LoadBalancerInterceptor implements ClientHttpRequestInterceptor {

   private LoadBalancerClient loadBalancer;

   private LoadBalancerRequestFactory requestFactory;

   public LoadBalancerInterceptor(LoadBalancerClient loadBalancer,
         LoadBalancerRequestFactory requestFactory) {
      this.loadBalancer = loadBalancer;
      this.requestFactory = requestFactory;
   }

   public LoadBalancerInterceptor(LoadBalancerClient loadBalancer) {
      // for backwards compatibility
      this(loadBalancer, new LoadBalancerRequestFactory(loadBalancer));
   }

   @Override
   public ClientHttpResponse intercept(final HttpRequest request, final byte[] body,
         final ClientHttpRequestExecution execution) throws IOException {
      final URI originalUri = request.getURI();
      String serviceName = originalUri.getHost();
      Assert.state(serviceName != null,
            "Request URI does not contain a valid hostname: " + originalUri);
      //==============================过滤器关键地方===================================
      return this.loadBalancer.execute(serviceName,
            this.requestFactory.createRequest(request, body, execution));
   }
}


//===============this.requestFactory.createRequest(request, body, execution)
//使用函数表达式的方式返回一个LoadBalancerRequest对象
//该对象T apply(ServiceInstance instance) throws Exception;
//apply最后面的execute就是执行真正发送请求的方法
public LoadBalancerRequest<ClientHttpResponse> createRequest(
			final HttpRequest request, final byte[] body,
			final ClientHttpRequestExecution execution) {
		return instance -> {
			HttpRequest serviceRequest = new ServiceRequestWrapper(request, instance,
					this.loadBalancer);
			if (this.transformers != null) {
				for (LoadBalancerRequestTransformer transformer : this.transformers) {
					serviceRequest = transformer.transformRequest(serviceRequest,
							instance);
				}
			}
			return execution.execute(serviceRequest, body);
		};
	}
//=================this.loadBalancer.execute
public <T> T execute(String serviceId, LoadBalancerRequest<T> request, Object hint)
			throws IOException {
    	//从工厂获取ILoadBalancer

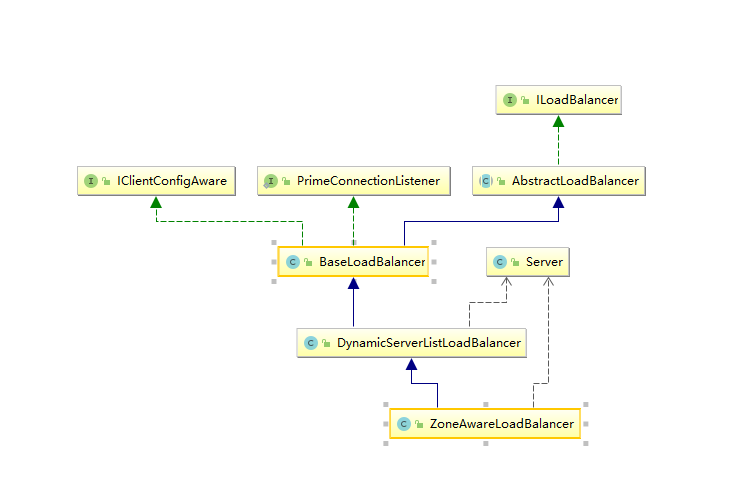

    	//默认注入为ZoneAwareLoadBalancer extends DynamicServerListLoadBalancer
		ILoadBalancer loadBalancer = getLoadBalancer(serviceId);
    	//就是调用loadBalancer.chooseServer方法
		Server server = getServer(loadBalancer, hint);
		if (server == null) {
			throw new IllegalStateException("No instances available for " + serviceId);
		}
		RibbonServer ribbonServer = new RibbonServer(serviceId, server,
				isSecure(server, serviceId),
				serverIntrospector(serviceId).getMetadata(server));

		return execute(serviceId, ribbonServer, request);
	}

//============================execute
@Override
	public <T> T execute(String serviceId, ServiceInstance serviceInstance,
			LoadBalancerRequest<T> request) throws IOException {
		Server server = null;
		if (serviceInstance instanceof RibbonServer) {
			server = ((RibbonServer) serviceInstance).getServer();
		}
		if (server == null) {
			throw new IllegalStateException("No instances available for " + serviceId);
		}

		RibbonLoadBalancerContext context = this.clientFactory
				.getLoadBalancerContext(serviceId);
		RibbonStatsRecorder statsRecorder = new RibbonStatsRecorder(context, server);

		try {
            //===========================那刚才封装的LoadBalancerRequest去调用apply方法
			T returnVal = request.apply(serviceInstance);
			statsRecorder.recordStats(returnVal);
			return returnVal;
		}
		// catch IOException and rethrow so RestTemplate behaves correctly
		catch (IOException ex) {
			statsRecorder.recordStats(ex);
			throw ex;
		}
		catch (Exception ex) {
			statsRecorder.recordStats(ex);
			ReflectionUtils.rethrowRuntimeException(ex);
		}
		return null;
	}
//====================createRequest
//所以现在关键又来到LoadBalancerRequest 如何封装的真正请求
//最后真正发送请求 传参是一个Wrapper

public class ServiceRequestWrapper extends HttpRequestWrapper {

	private final ServiceInstance instance;

	private final LoadBalancerClient loadBalancer;

	public ServiceRequestWrapper(HttpRequest request, ServiceInstance instance,
			LoadBalancerClient loadBalancer) {
		super(request);
		this.instance = instance;
		this.loadBalancer = loadBalancer;
	}


    //这里就是将服务名换成真正的url
	@Override
	public URI getURI() {
		URI uri = this.loadBalancer.reconstructURI(this.instance, getRequest().getURI());
		return uri;
	}

}
public class HttpRequestWrapper implements HttpRequest {
    private final HttpRequest request;

    public HttpRequestWrapper(HttpRequest request) {
        Assert.notNull(request, "HttpRequest must not be null");
        this.request = request;
    }

    public HttpRequest getRequest() {
        return this.request;
    }

    @Nullable
    public HttpMethod getMethod() {
        return this.request.getMethod();
    }

    public String getMethodValue() {
        return this.request.getMethodValue();
    }

    public URI getURI() {
        return this.request.getURI();
    }

    public HttpHeaders getHeaders() {
        return this.request.getHeaders();
    }
}

获取负载均衡器 getLoadBalancer

protected ILoadBalancer getLoadBalancer(String serviceId) {
   return this.clientFactory.getLoadBalancer(serviceId);
}

public ILoadBalancer getLoadBalancer(String name) {
		return getInstance(name, ILoadBalancer.class);
}

public <C> C getInstance(String name, Class<C> type) {
		C instance = super.getInstance(name, type);
		if (instance != null) {
			return instance;
		}
		IClientConfig config = getInstance(name, IClientConfig.class);
		return instantiateWithConfig(getContext(name), type, config);
	}

//super.getInsttance()
//从子容器里面获取！！！！
//第一次没有获取到子容器上下文，就创建一个
//能够实现配置隔离的根本原因
 public <T> T getInstance(String name, Class<T> type) {
        AnnotationConfigApplicationContext context = this.getContext(name);
        return BeanFactoryUtils.beanNamesForTypeIncludingAncestors(context, type).length > 0 ? context.getBean(type) : null;
    }
//创建上下文
protected AnnotationConfigApplicationContext createContext(String name) {
		AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();
    	//这里的configuration 就是刚才注入SpringClientFactory的时候传进来的

    	//这就是@RibbonClient指定的配置
		if (this.configurations.containsKey(name)) {
			for (Class<?> configuration : this.configurations.get(name)
					.getConfiguration()) {
				context.register(configuration);
			}
		}
    	//@RibbonClients指定的默认配置
		for (Map.Entry<String, C> entry : this.configurations.entrySet()) {
			if (entry.getKey().startsWith("default.")) {
				for (Class<?> configuration : entry.getValue().getConfiguration()) {
					context.register(configuration);
				}
			}
		}
		context.register(PropertyPlaceholderAutoConfiguration.class,
				this.defaultConfigType);
		context.getEnvironment().getPropertySources().addFirst(new MapPropertySource(
				this.propertySourceName,
				Collections.<String, Object>singletonMap(this.propertyName, name)));
		if (this.parent != null) {
			// Uses Environment from parent as well as beans
			context.setParent(this.parent);
			// jdk11 issue
			// https://github.com/spring-cloud/spring-cloud-netflix/issues/3101
			context.setClassLoader(this.parent.getClassLoader());
		}
		context.setDisplayName(generateDisplayName(name));
		context.refresh();
		return context;
	}

LoadBalancer

public DynamicServerListLoadBalancer(IClientConfig clientConfig, IRule rule, IPing ping,
                                     ServerList<T> serverList, ServerListFilter<T> filter,
                                     ServerListUpdater serverListUpdater) {
    //Iping 定期发送心跳，检测ServerList存活
    //IRule 负载均衡规则
    //serverList 实力列表缓存
    super(clientConfig, rule, ping);
    this.serverListImpl = serverList;
    this.filter = filter;
    this.serverListUpdater = serverListUpdater;
    if (filter instanceof AbstractServerListFilter) {
        ((AbstractServerListFilter) filter).setLoadBalancerStats(getLoadBalancerStats());
    }
    restOfInit(clientConfig);
}

选择server

LoadBalancer的chooseServer实现

public Server chooseServer(Object key) {
    if (counter == null) {
        counter = createCounter();
    }
    counter.increment();
    if (rule == null) {
        return null;
    } else {
        try {
            return rule.choose(key);
        } catch (Exception e) {
            logger.warn("LoadBalancer [{}]:  Error choosing server for key {}", name, key, e);
            return null;
        }
    }
}

public interface IRule{
    /*
     * choose one alive server from lb.allServers or
     * lb.upServers according to key
     *
     * @return choosen Server object. NULL is returned if none
     *  server is available
     */

    public Server choose(Object key);

    public void setLoadBalancer(ILoadBalancer lb);

    public ILoadBalancer getLoadBalancer();
}

Ping

void setupPingTask() {
    if (canSkipPing()) {
        return;
    }
    if (lbTimer != null) {
        lbTimer.cancel();
    }
    lbTimer = new ShutdownEnabledTimer("NFLoadBalancer-PingTimer-" + name,
            true);
    //默认30s
    lbTimer.schedule(new PingTask(), 0, pingIntervalSeconds * 1000);
    forceQuickPing();
}

class PingTask extends TimerTask {
        public void run() {
            try {
            	new Pinger(pingStrategy).runPinger();
            } catch (Exception e) {
                logger.error("LoadBalancer [{}]: Error pinging", name, e);
            }
        }
    }

class Pinger {

        private final IPingStrategy pingerStrategy;

        public Pinger(IPingStrategy pingerStrategy) {
            this.pingerStrategy = pingerStrategy;
        }

        public void runPinger() throws Exception {
            if (!pingInProgress.compareAndSet(false, true)) {
                return; // Ping in progress - nothing to do
            }

            // we are "in" - we get to Ping

            Server[] allServers = null;
            boolean[] results = null;

            Lock allLock = null;
            Lock upLock = null;

            try {
                /*
                 * The readLock should be free unless an addServer operation is
                 * going on...
                 */
                allLock = allServerLock.readLock();
                allLock.lock();
                allServers = allServerList.toArray(new Server[allServerList.size()]);
                allLock.unlock();

                int numCandidates = allServers.length;
                results = pingerStrategy.pingServers(ping, allServers);

                final List<Server> newUpList = new ArrayList<Server>();
                final List<Server> changedServers = new ArrayList<Server>();

                for (int i = 0; i < numCandidates; i++) {
                    boolean isAlive = results[i];
                    Server svr = allServers[i];
                    boolean oldIsAlive = svr.isAlive();

                    svr.setAlive(isAlive);

                    if (oldIsAlive != isAlive) {
                        changedServers.add(svr);
                        logger.debug("LoadBalancer [{}]:  Server [{}] status changed to {}",
                    		name, svr.getId(), (isAlive ? "ALIVE" : "DEAD"));
                    }

                    if (isAlive) {
                        newUpList.add(svr);
                    }
                }
                upLock = upServerLock.writeLock();
                upLock.lock();
                upServerList = newUpList;
                upLock.unlock();

                notifyServerStatusChangeListener(changedServers);
            } finally {
                pingInProgress.set(false);
            }
        }
    }

Ribbon对实例的缓存

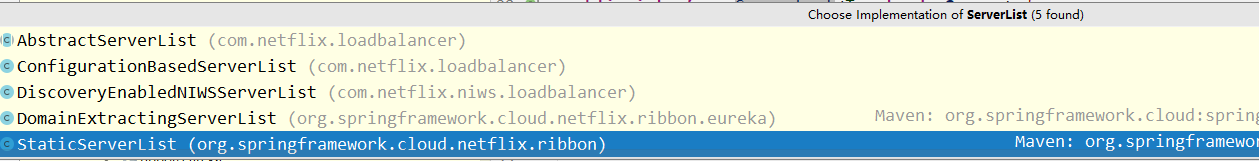

DynamicServerListLoadBalancer.ServerList

eureka整合下是DiscoveryEnabledNIWSServerList

初始化的时候会从EurekaClient拉取数据

Ribbon对实例缓存的更新

DynamicServerListLoadBalancer -> ServerListUpdater.UpdateAction updateAction 更新的具体流程

DynamicServerListLoadBalancer -> ServerListUpdater serverListUpdater 更新器，用来执行updateAction

updateAction 在 Eureka整合情况下，默认为DiscoveryEnabledNIWSServerList，就是从EurekaClient获取列表

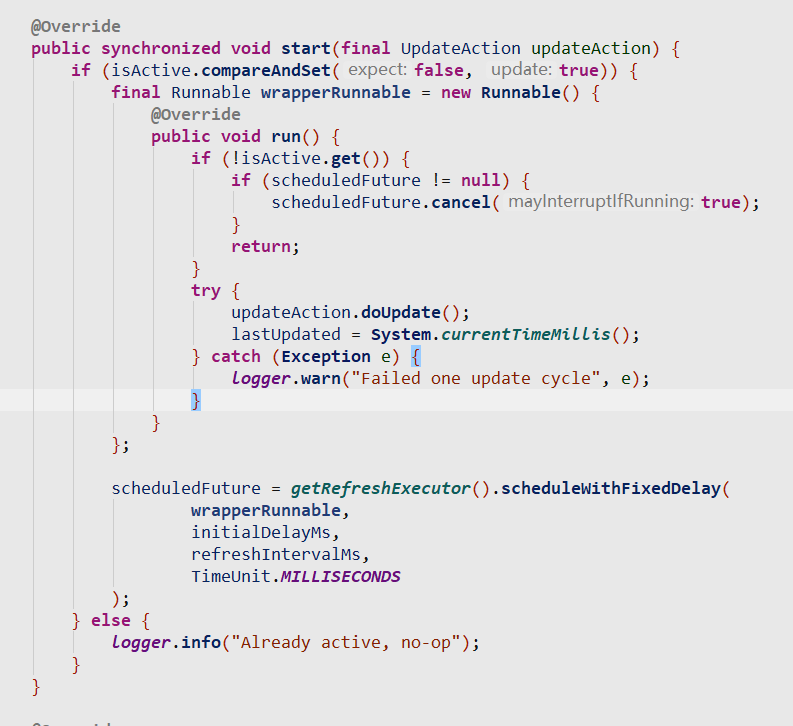

serverListUpdater 默认实现是 PollingServerListUpdater 新开线程定时去执行updateAction,这也就成了常说的Ribbon和EurekaClient之间还有30s的延迟！！！

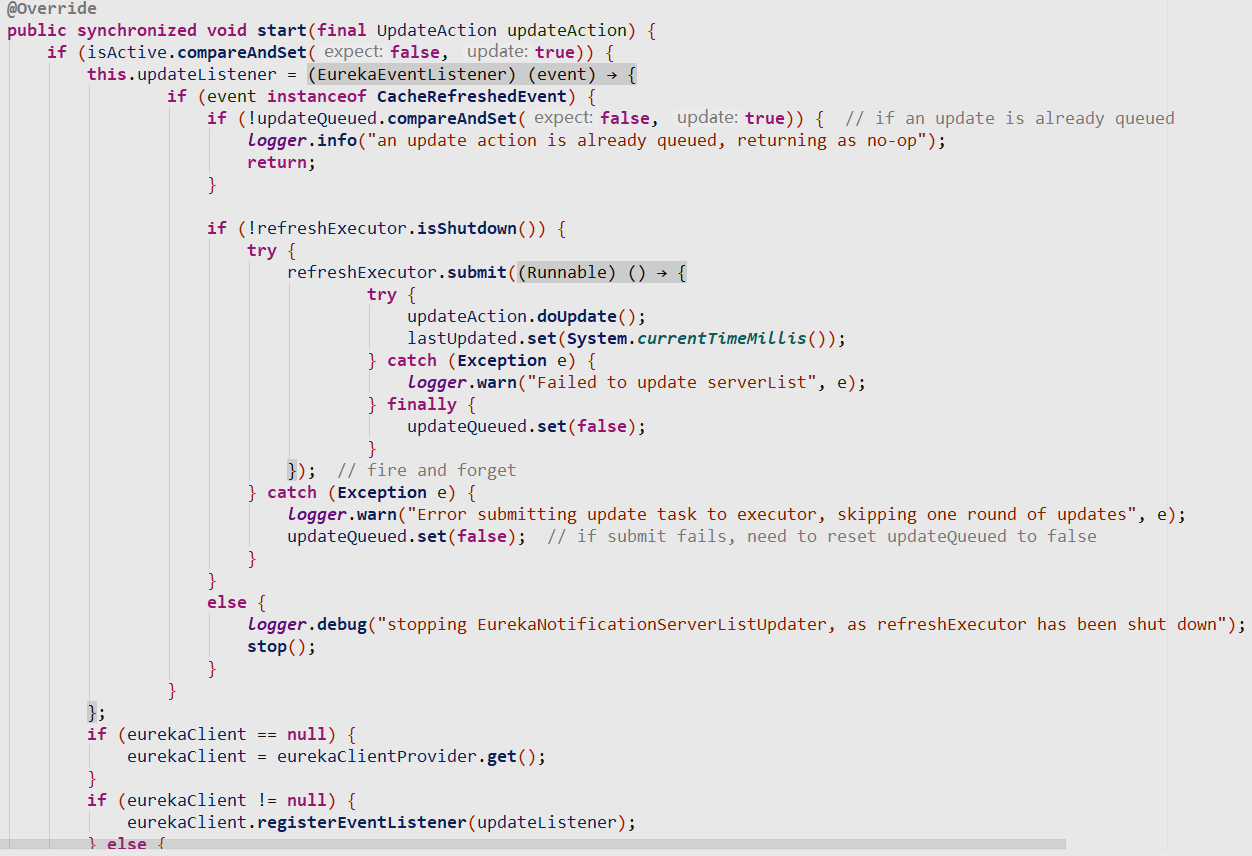

serverListUpdater还有一个实现 EurekaNotificationServerListUpdater，这个的原理就是将updateAction封装成一个EurekaEventListener，当EurekaClient发生变化的时候通知修改，没有延迟。

一些默认的配置类

RibbonClientConfiguration

EurekaRibbonClientConfiguration

……..

IRule实现

• RoundRobinRule：轮询；
• RandomRule：随机；
• AvailabilityFilteringRule：会先过滤掉由于多次访问故障而处于断路器状态的服务，还有并发的连接数量超过阈值的服务，然后对剩余的服务列表按照轮询策略进行访问；
• WeightedResponseTimeRule：根据平均响应时间计算所有服务的权重，响应时间越快的服务权重越大被选中的概率越大。刚启动时如果统计信息不足，则使用RoundRobinRule（轮询）策略，等统计信息足够，会切换到WeightedResponseTimeRule；
• RetryRule：先按照RoundRobinRule（轮询）策略获取服务，如果获取服务失败则在指定时间内进行重试，获取可用的服务；
• BestAvailableRule：会先过滤掉由于多次访问故障而处于断路器跳闸状态的服务，然后选择一个并发量最小的服务；
• ZoneAvoidanceRule：复合判断Server所在区域的性能和Server的可用性选择服务器；

Iping实现类
